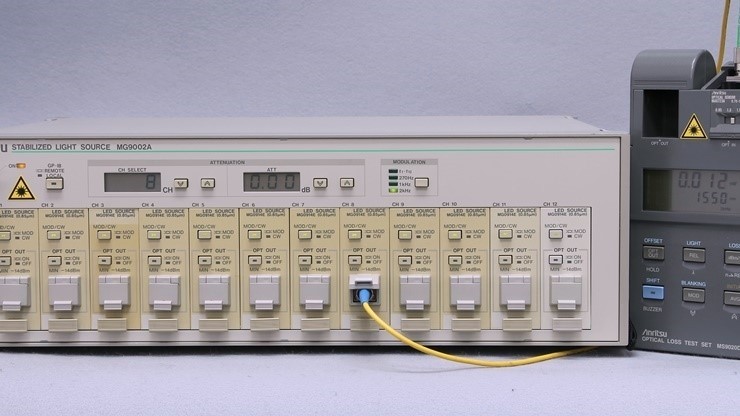

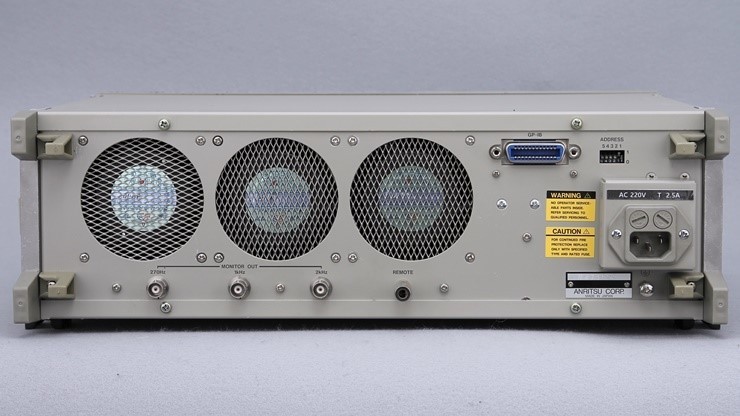

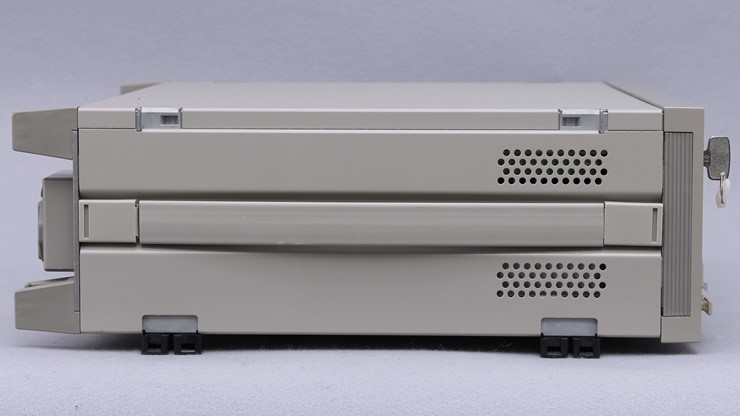

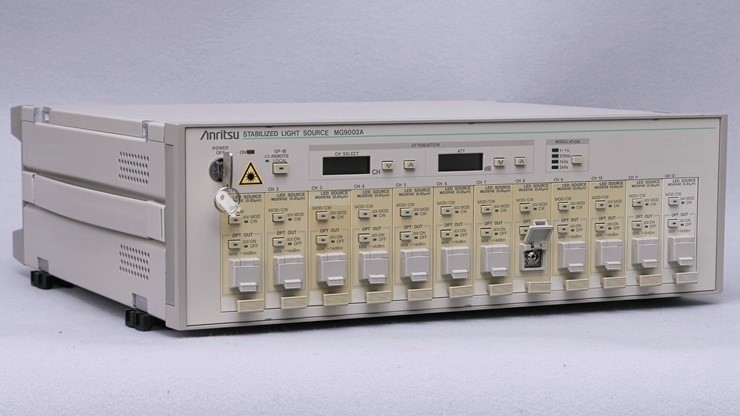

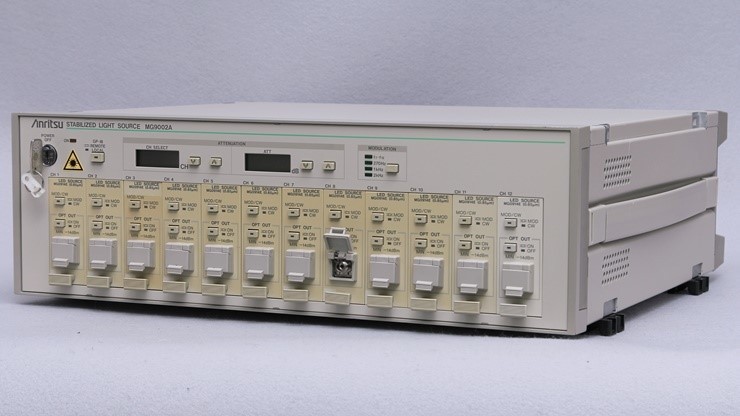

Anritsu MG9002A Stabilized Source (#00) => 80만원
- LD 광원 : 6 Unit
- LED light source: 12 Unit
- Internal modulation
- Simultaneous modulation frequencies: (270 Hz, 1 kHz, 2 kHz) ±0.1%
- Individual modulation frequencies for each channel: Twelve range 170 to 1000 Hz
- Duty factor: 50 ±10%
- Output synchronized with modulation signal: TTL level (terminated at 10 kΩ), BNC
- External modulation
- Frequency: DC to 30 MHz
- Input: 0 to +0.8/+2 to +5 V
- Impedance : 75 Ω, BNC connector
- GPIB : SH1, AH1, T8, L4, SR0, RL1, PP0, DC1, DT0, C0
- Temperature range ?10°~ +50°C (spec. meet), ?40°~ +70°C (storage)
장착모듈 : MG0914E x12CH = 0,850m LED,-13dBm±1dB (GI, FC 커넥터),ATT:0~6dB

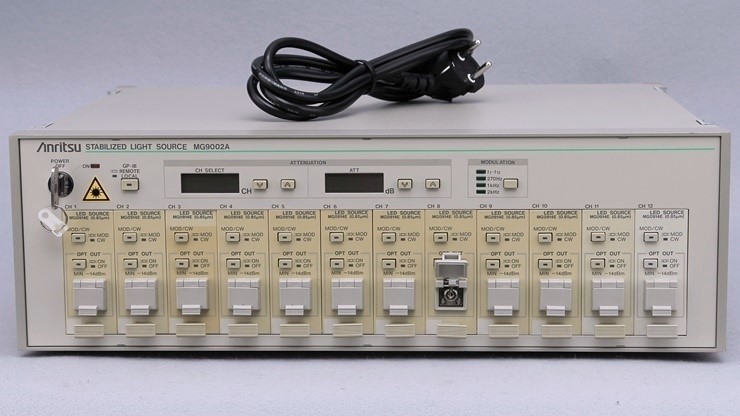

구성품 : 본체,전원코드
|
|
|
|
|
|
